Specification

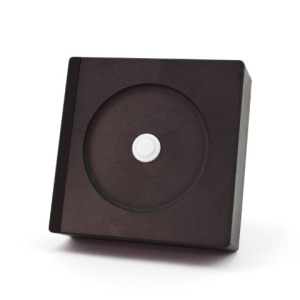

Node
| Dimensions | see Drawing |
| Weight | 151g |
| Temperature coefficient (30 to 65°C) | 0.05 to 0.075%/K |
| Operating and storage temperature | 0°C to +60˚C |
| IP protection class | IP40 |
| Spectral sensitivity | UVC up to VIS |
| Battery lifetime | 10 hours (unlimited use with charger attached) |
| Radio range (air) | 15 meters in a chamber |
| Radio range (wall) | 10 meters |
| Radio range (chamber) | 3 meters |
| Connections | USB-C |
| Transmission | low-power 2.4 GHz |
Drawing Node

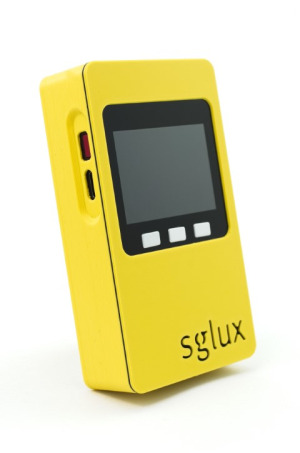

Display/Collector
| Dimensions | see Drawing |
| Weight | 131g |
| Operating and storage temperature | 0°C to +60˚C |
| IP protection class | IP40 |
| Battery lifetime | 10 hours (unlimited use with charger attached) |

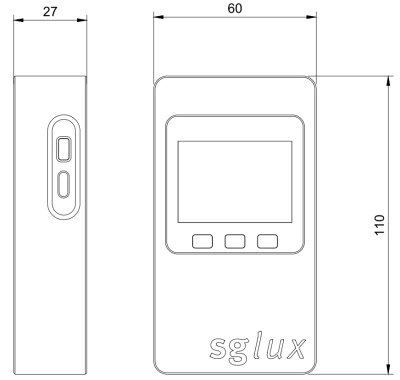

Drawing Display/Collector
